Mahanoy Ry

Diary Diagrams Cards Layout Locos Photos Projects Sanborn Structures Husman	Model railroad shaped by the towns and industries in the Mahanoy Valley of Pennsylvania served by the Philadelphia & Reading RR including the un-modeled Mahanoy Plane.

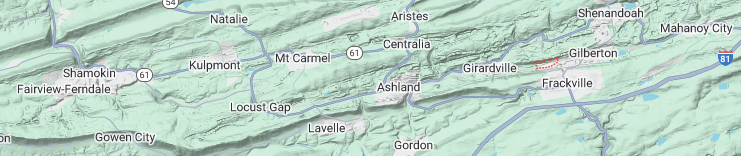

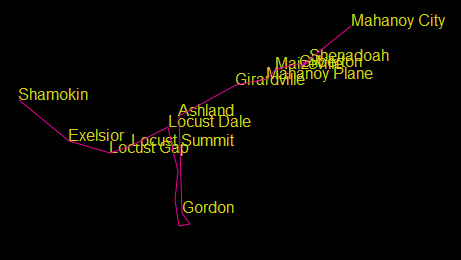

		Shamokin Excelsior Locust Gap Locust Summit Gordon Locust Dale Ashland Girardville Mahanoy Plane Maizeville Gilberton Shendoah Mahanoy City

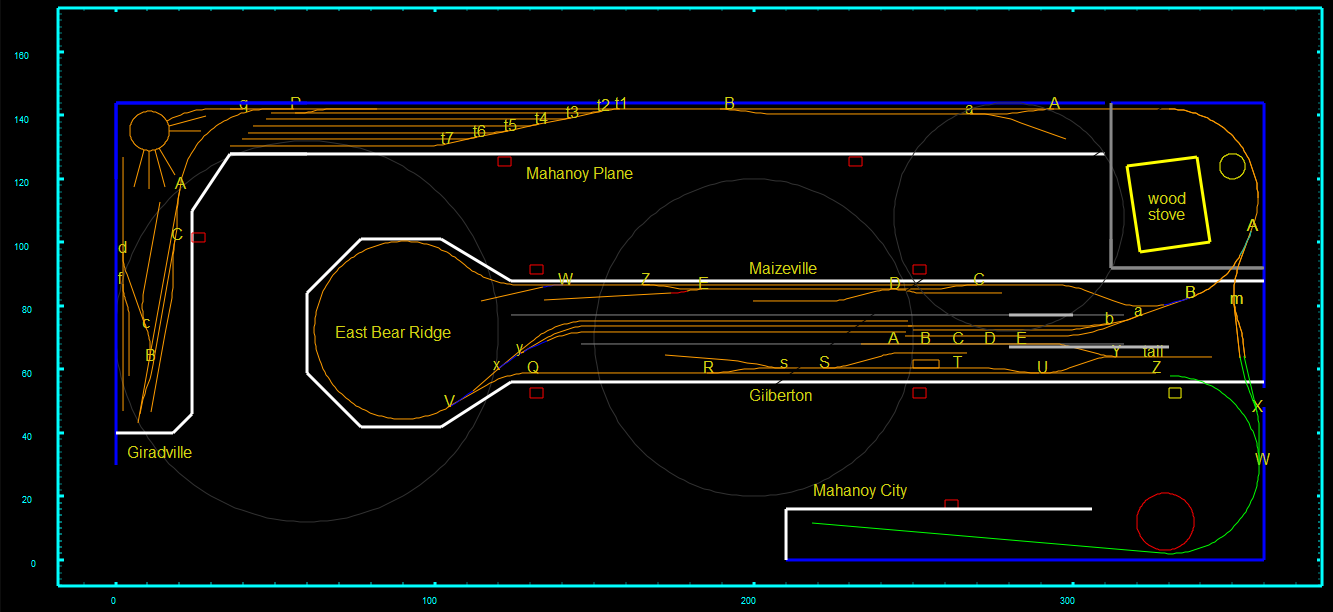

Track Plan

Gilberton

Maizeville

Progress Photos

2025 June

2025 May

2025 April

2025 March

2024 December

2022 February

Structures

Collieries in the Mahanoy Valley 1858-1953

Locos

Atlas-Kato GP7	RDG #603	16+ oz	2025 May	$55
Atlas-Kato GP7	RDG #7812	16+ oz	2025 May	$55
Gem D4 4-4-0	RDG	? oz	2018 Aug	$300
Gem Boxcab	ALGIER	-7 oz	2016	-$100
Gem I10 2-8-0	RDG	? oz	2014 Jan	$289
Gem B8a 0-6-0	RDG	? oz	2013 Oct	$189
Gem I5c 2-8-0	RDG	? oz	2013 Oct	$250

Projects

• scripts to print coal trestle bents
• scripts to print loading docks
• modifed freight house

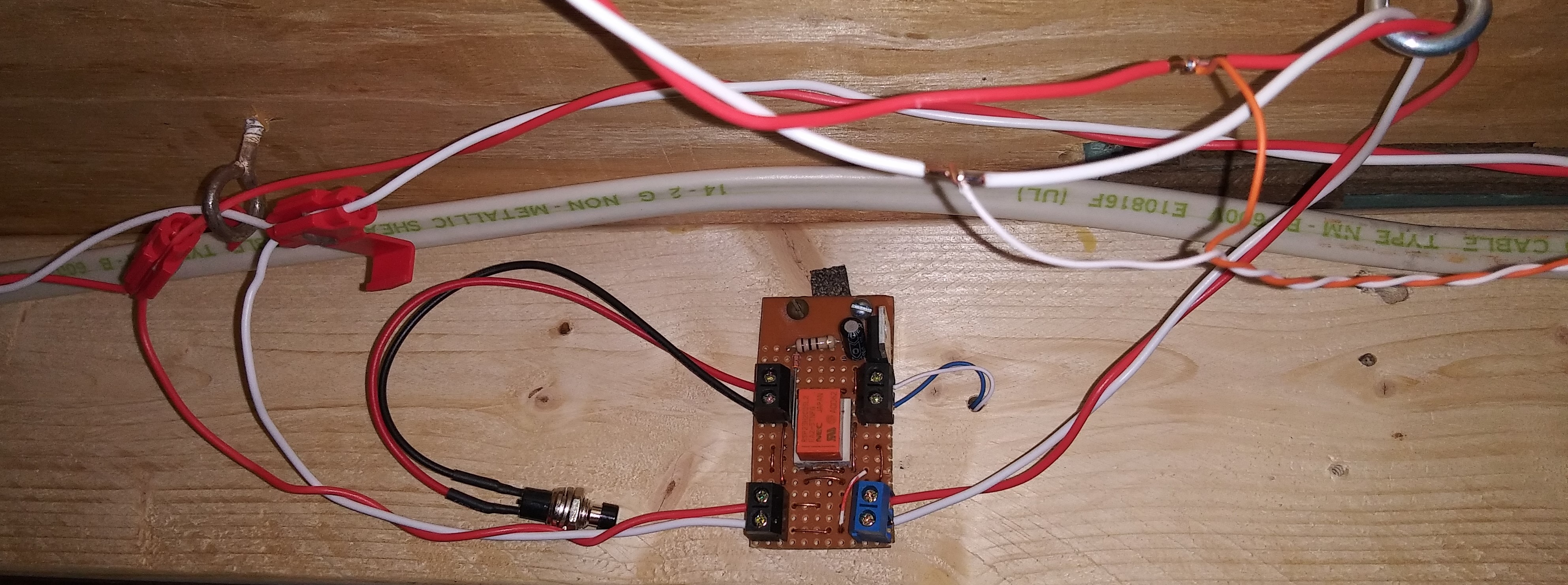

• manual reverser but problems with LEDs

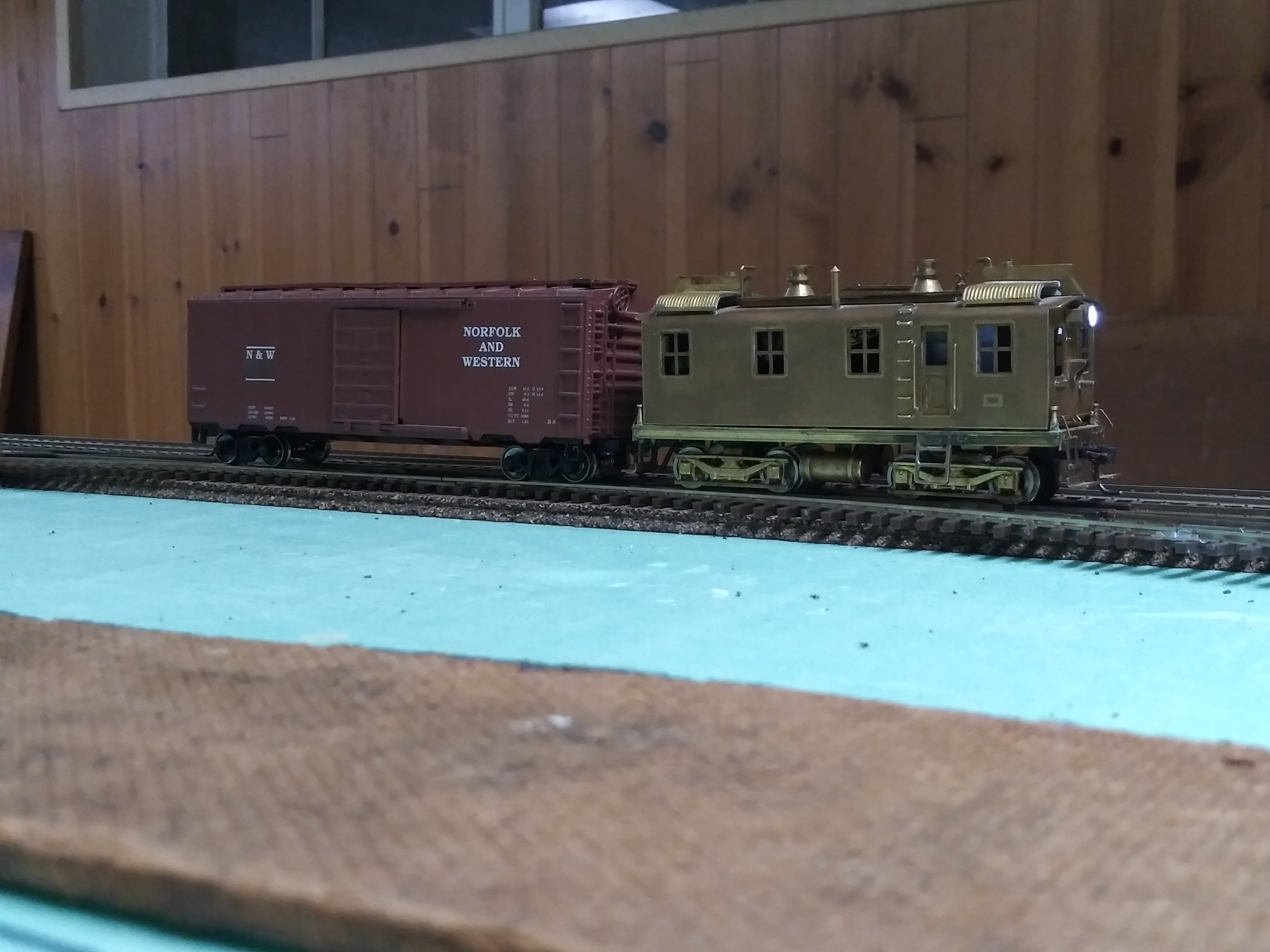

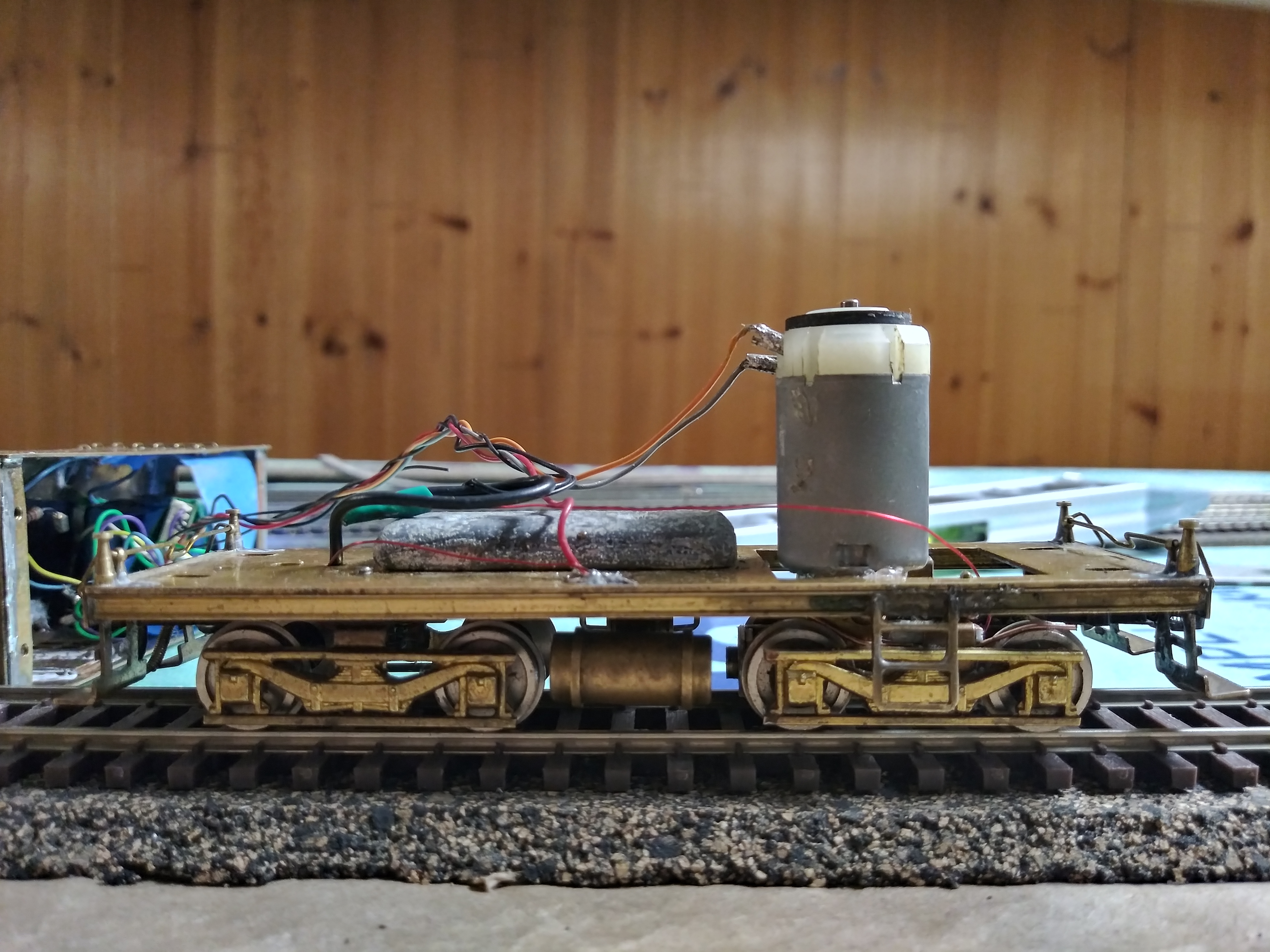

• remotored Boxcab
  • found nylon worm that mates with axle gear .. mod
  • learned that coefficients for RPM/V and mN/A are equal and provide the means to identify if a motor is suitable. Also determined that ~9mN of torque is appropriate
• Arduino Mega DCC command station, motor shield
• generic DCC controller using
  • ESP32 supporting WiFi
  • RS-485
  • OLED display
  • commercial 4x4 keypad
• accelerometer, 3V battery and java display

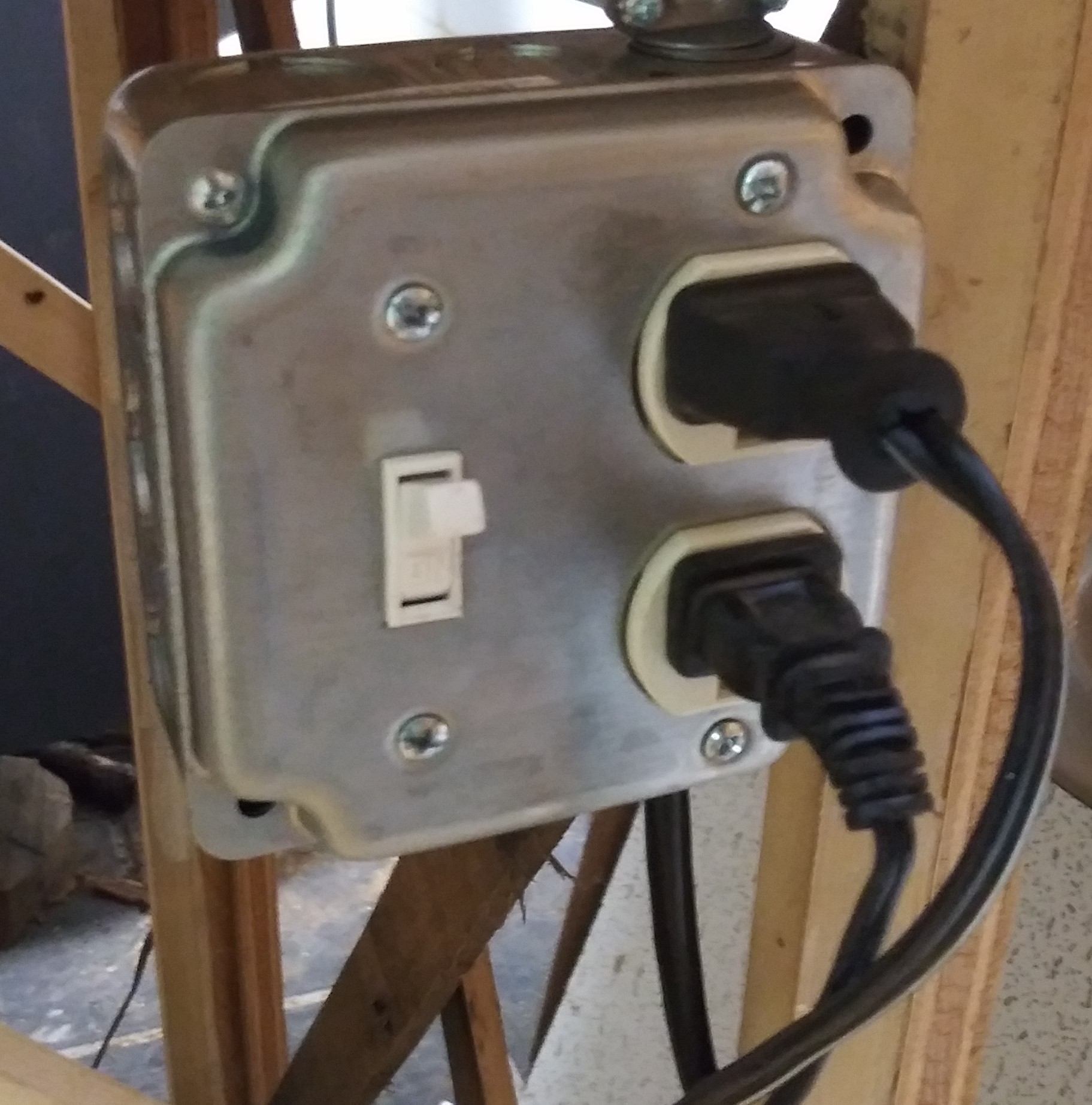

Layout Diary

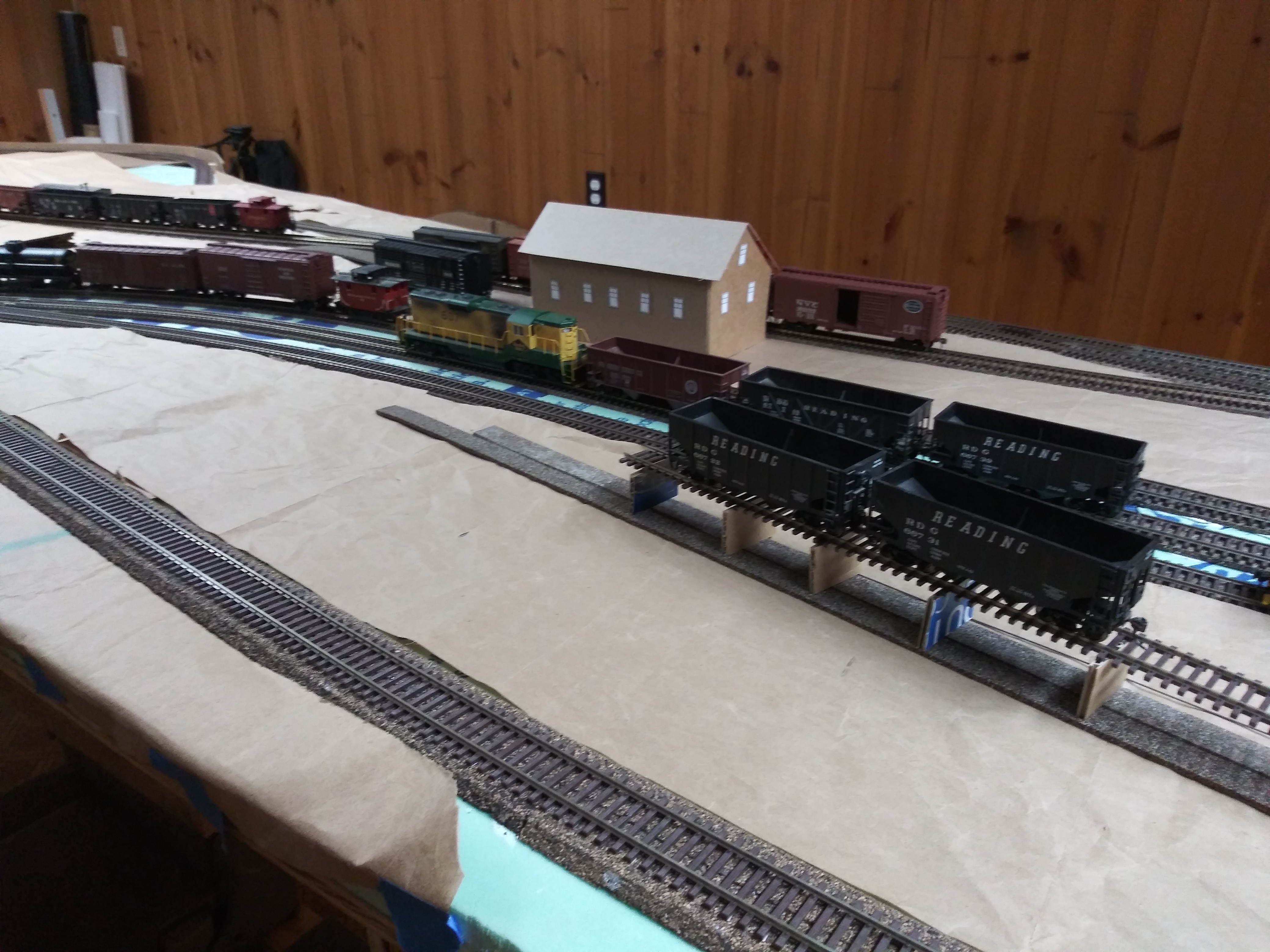

25/06/1

• started work on breaker
• started work on coal trestle

25/05/31

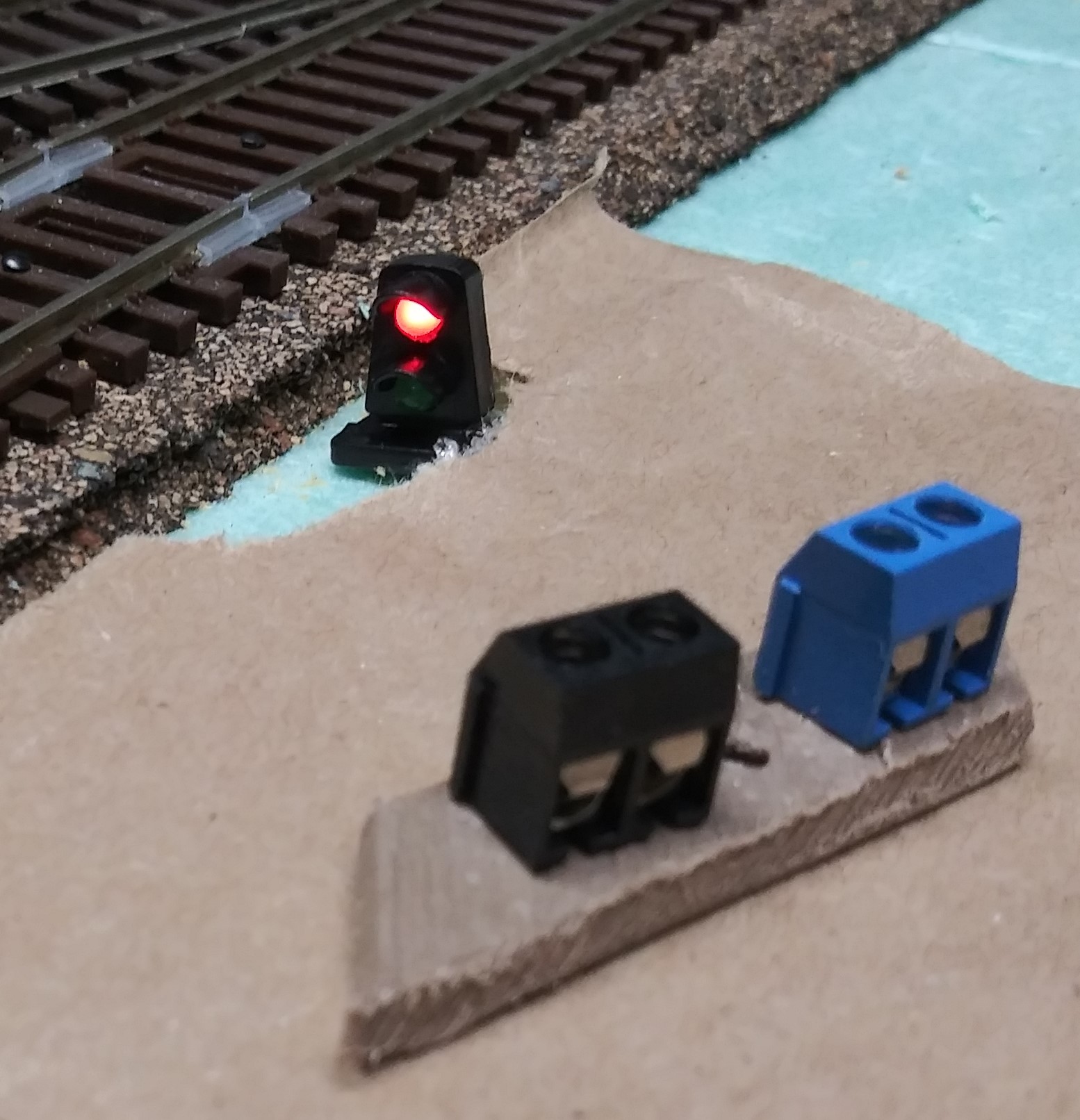

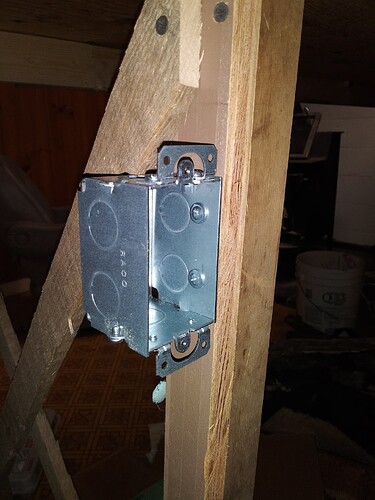

• completed wiring wall reverser switch and LED
• ran loco thru both ends of staging

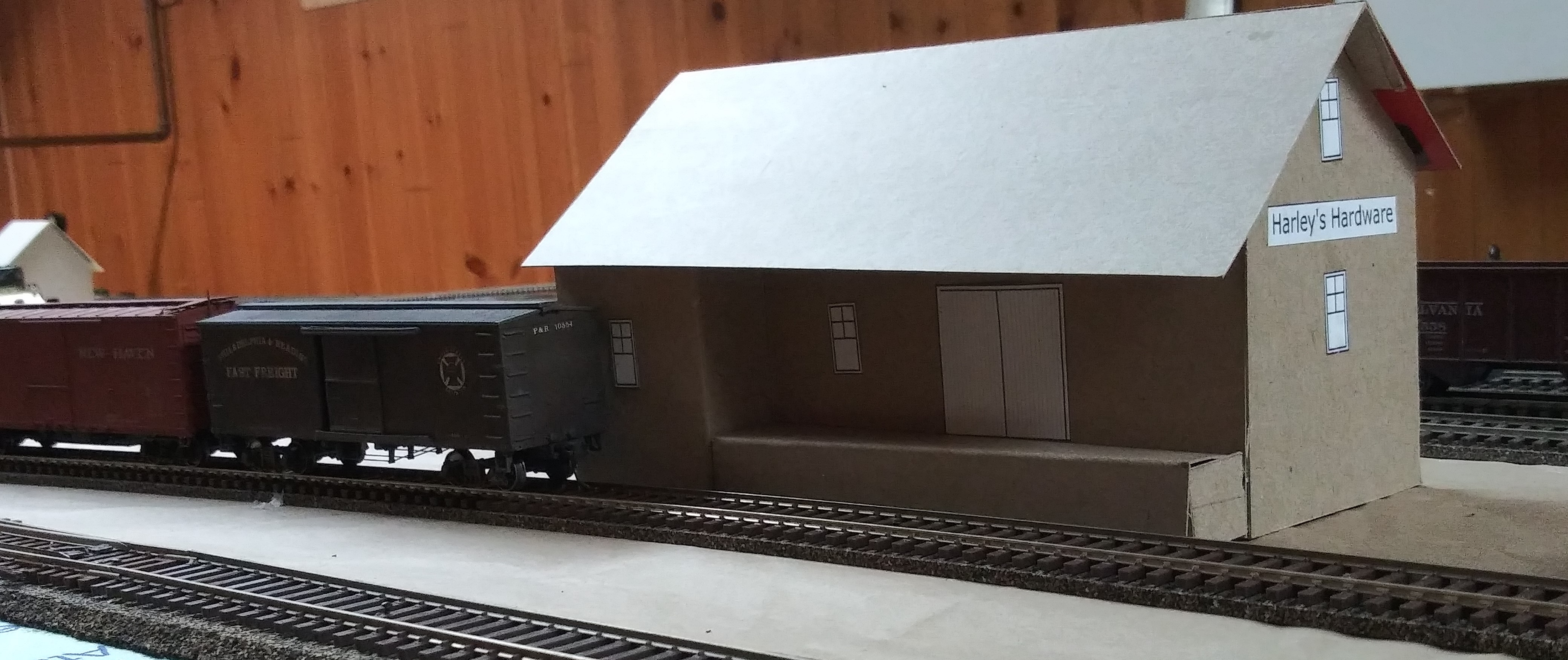

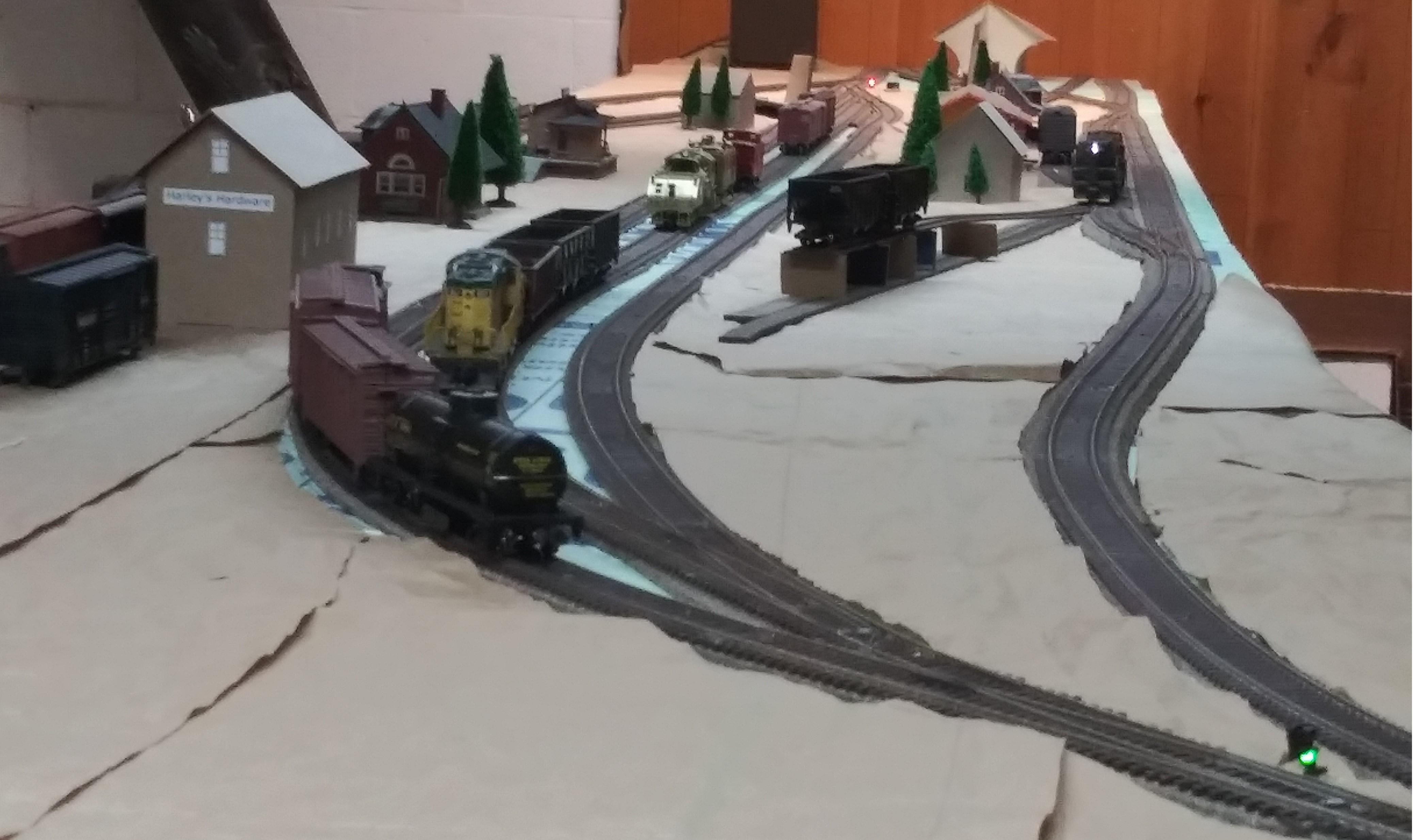

• completed Hadley's Hardware with paper windows
• ordered #148 kadee couplers
• been working on script to generate Cover Cards

25/05/7

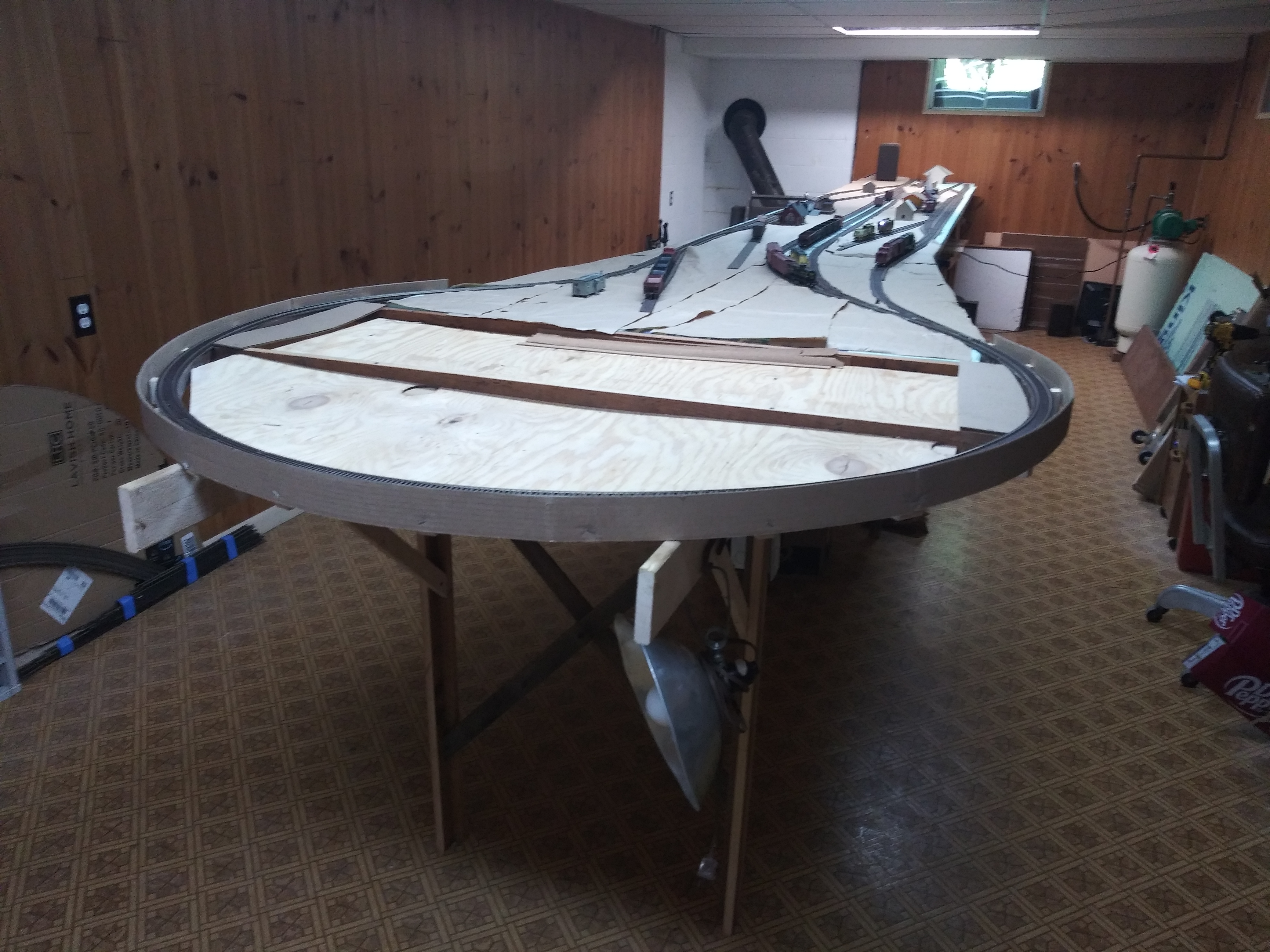

• finished pennisula trackage
• need to wire other end of manual reverser
• have 2 RDG GP7s from Kim

25/05/3

• club train show

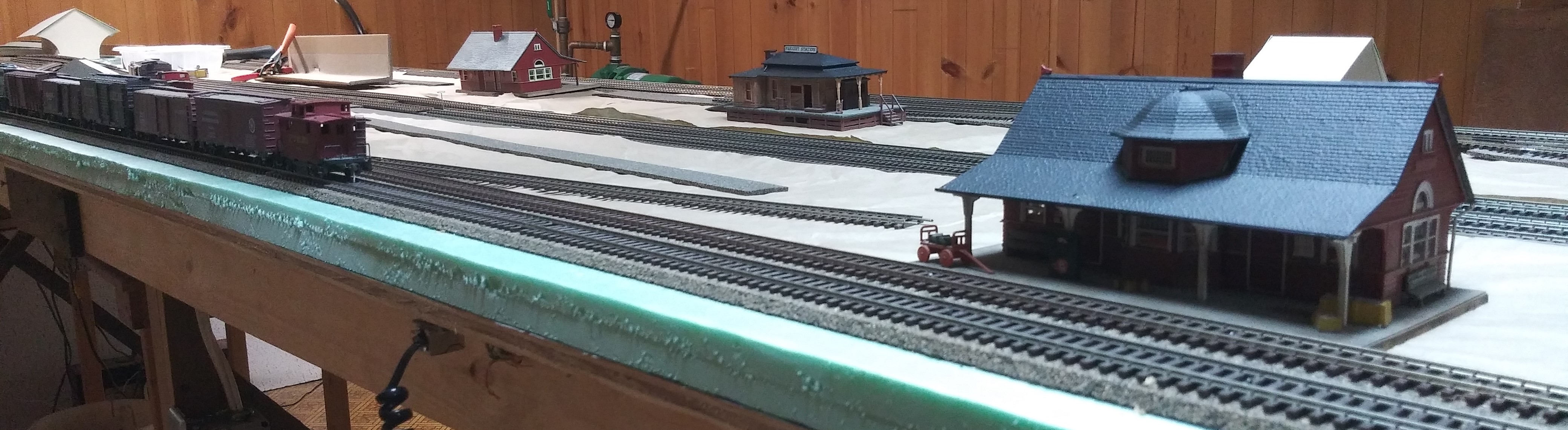

• picked up 2 depots and a freight house
• picked up Rdg caboose, NYC box, Wabash stock car, DL&W box

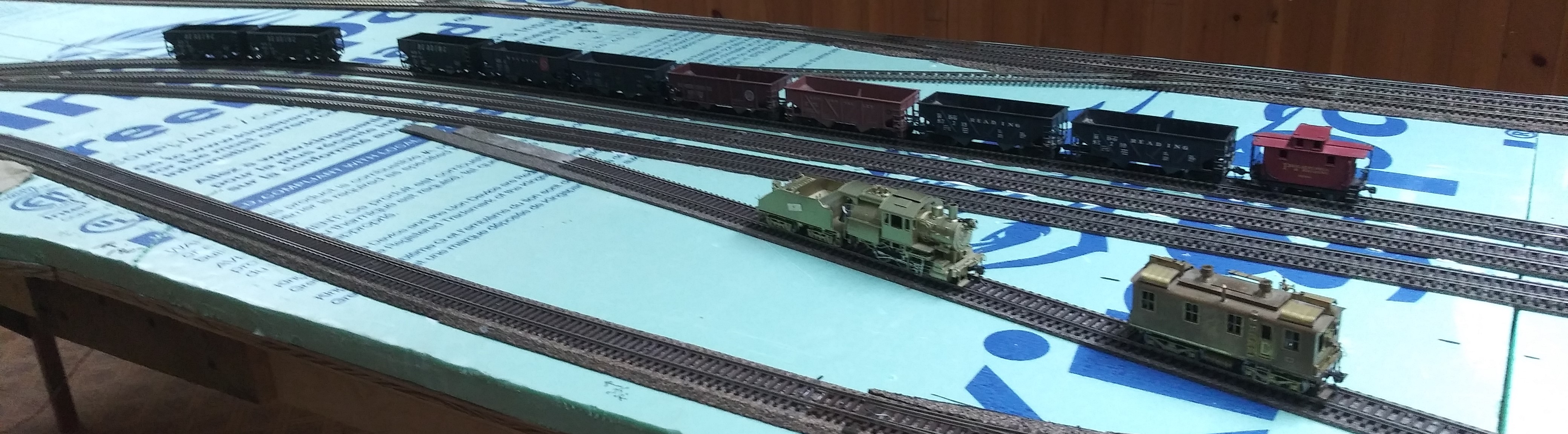

25/04/27

• kids + kyle operated layout using kim's diesels
• boxcab slipped trying to pull 5 cars
• quickly added 3' track to extend ends of layout

25/04/24

• need to connect far-end of staging tracks
• broight rolling stock onto track
• preparing for Jace
• successful DCC Arduino cmd-station code, need to test RS-485 connections

25/01/16

• glued 1/8" cork on caulk ramp to 3/16" cork

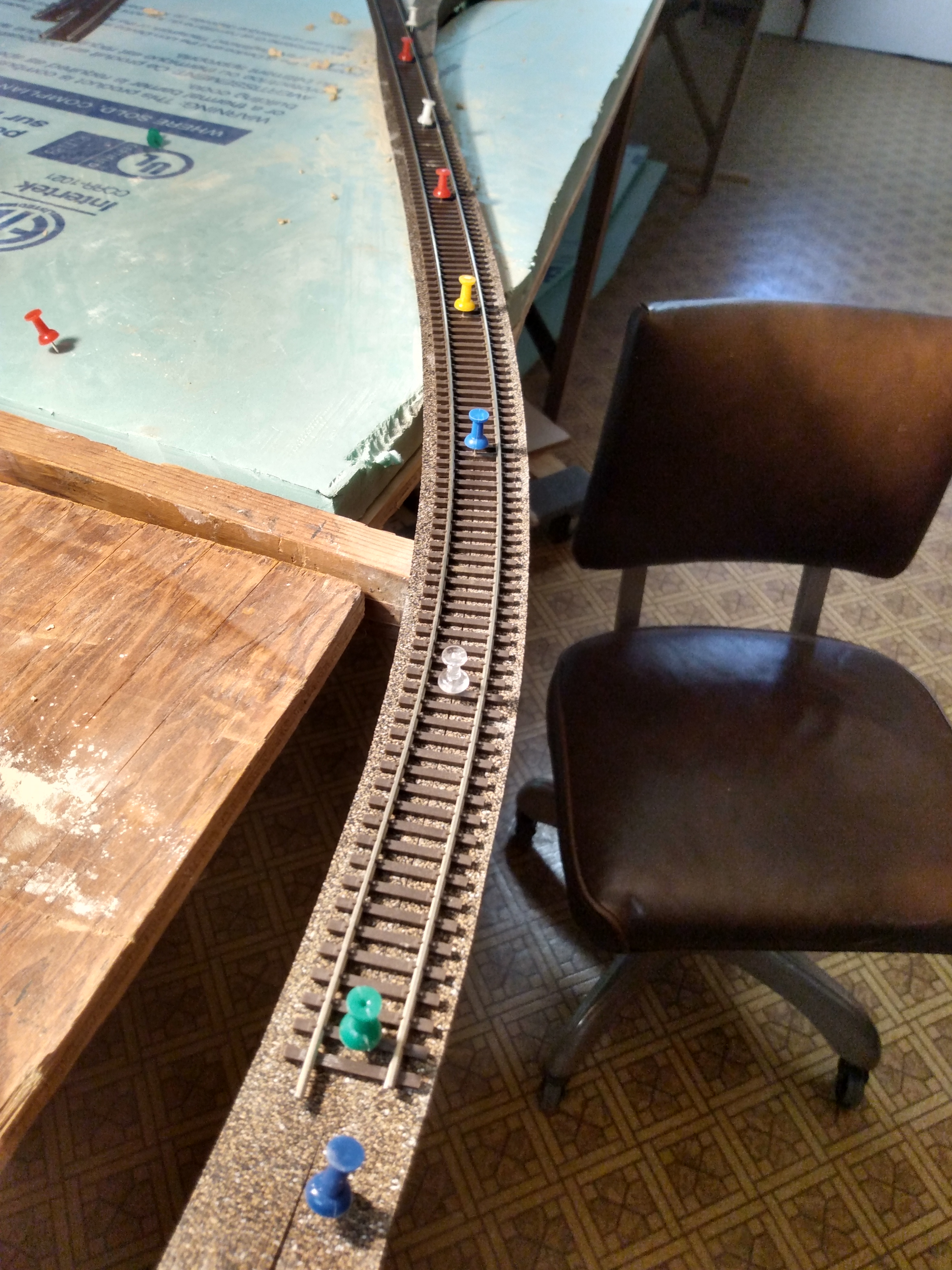

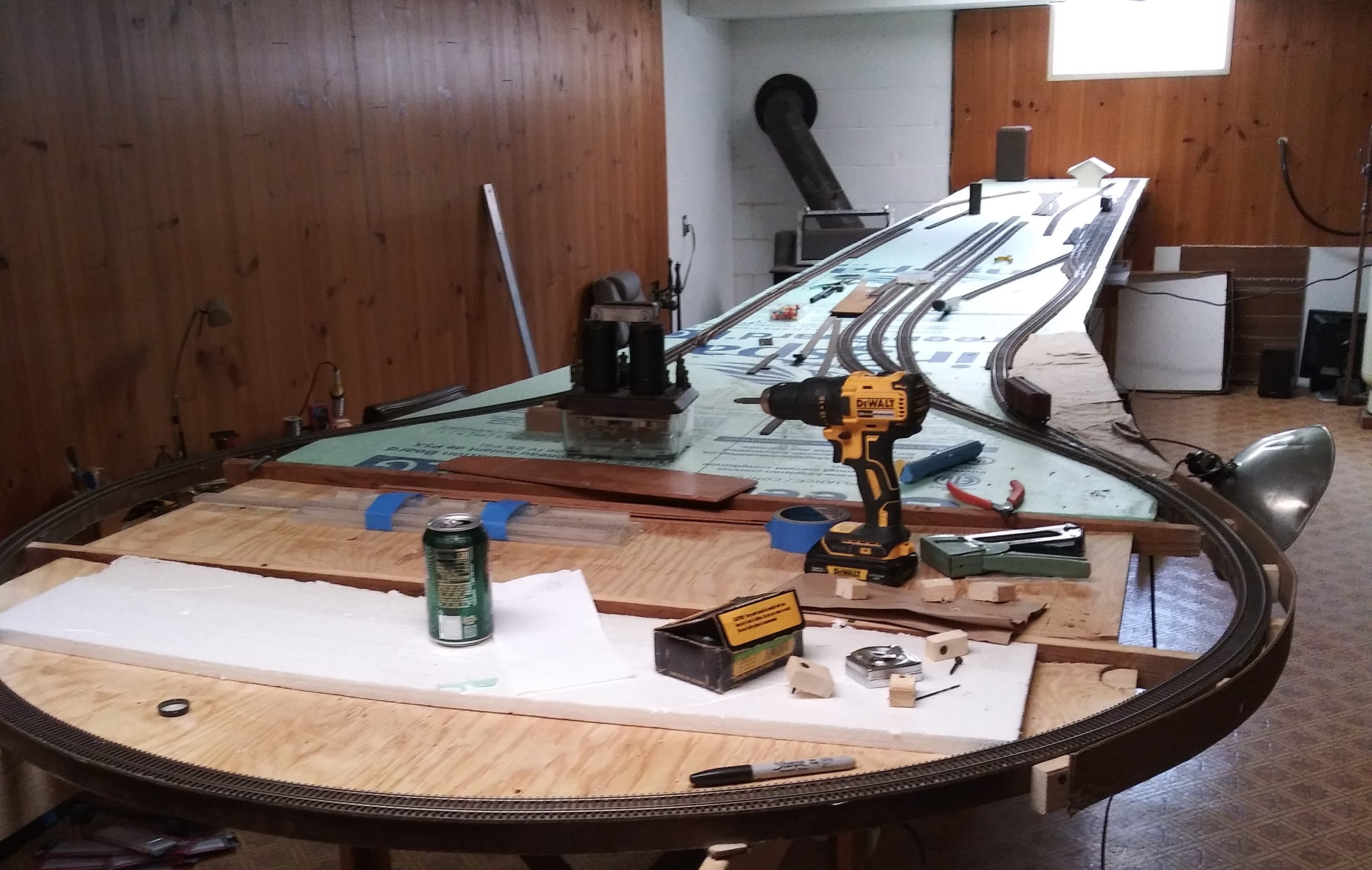

• fleshed out lower pennisula station trackage
• looking for B8/Boxcab worm/gear/motor replacement
  gear has 1/8" hole, ~13 teeth and ~.26" dia
  think gear 'mod' is 0.5, diaMm / #teeth
  worm has 1/8" bore, .25 dia
  looking for similar worm fits on common 2mm motor shaft

25/01/06

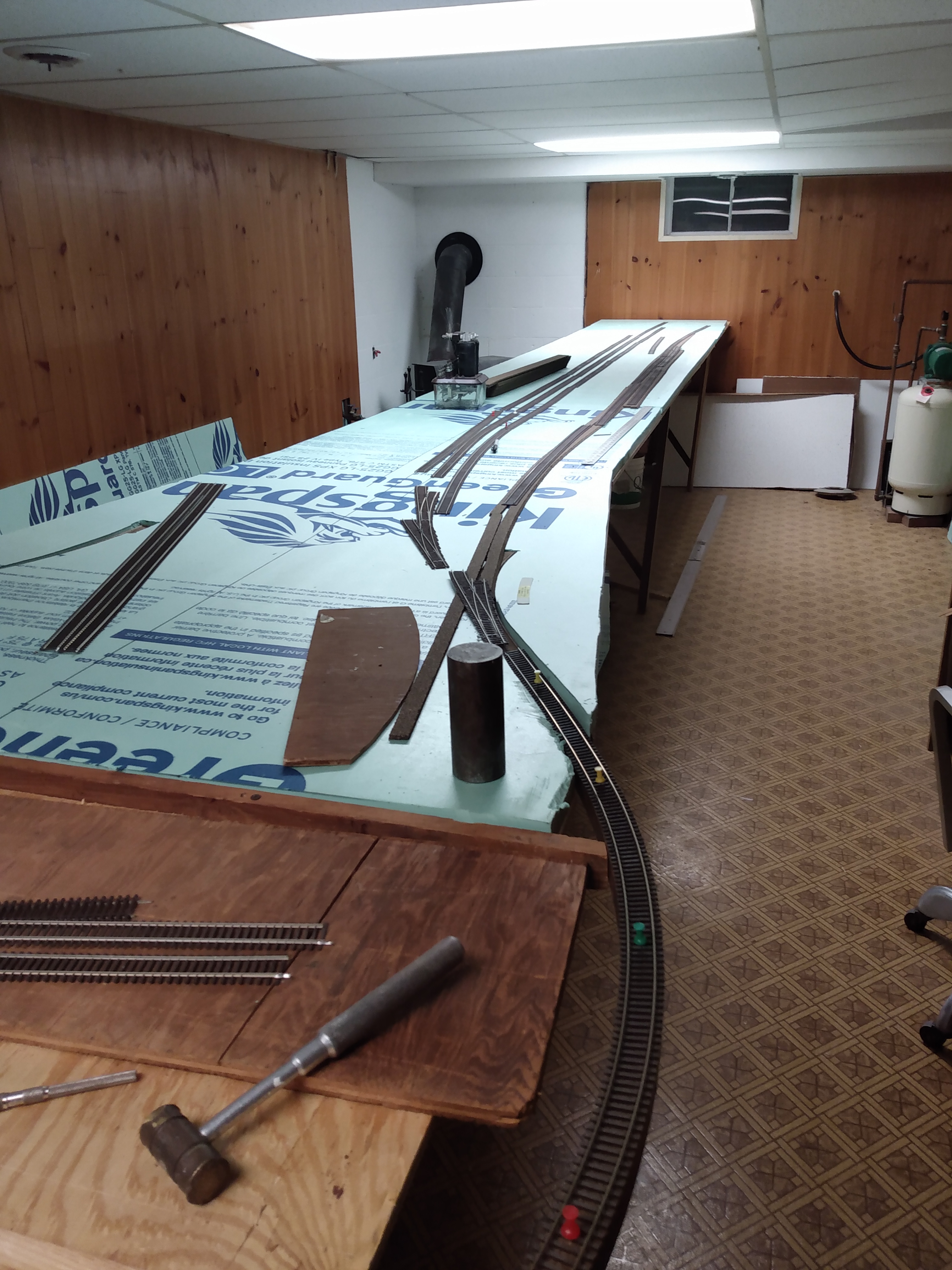

• laid out track for staging -- establish lines
• cut 1/8" cork for staging
• looked at older flex track, mix of code 83 & 100
• glued foam panel
• laid 2" line for station

25/01/03

• worked on 2nd chair
• added brace under staging turnout
• stared sanding foam to provide path to staging
• tried testing acceleration car
• glued foam to plywood

24/12/30

• glued outer edge of cork on spline
• marking track 2" from edge
• inventoried need for #6 and ordered remaingin from Oakland

24/12/17

• sanded plastic wood, added more where needed
• looked at different cork rolls: 1/8 and 0.09" and floor underlayment

24/12/16

• bought plastic wood and applied to top of spline

24/12/23

• tested wood stove after moving
• move van chair
• cut several 5/8" cork strips
• looked a car riding on cork covered spline

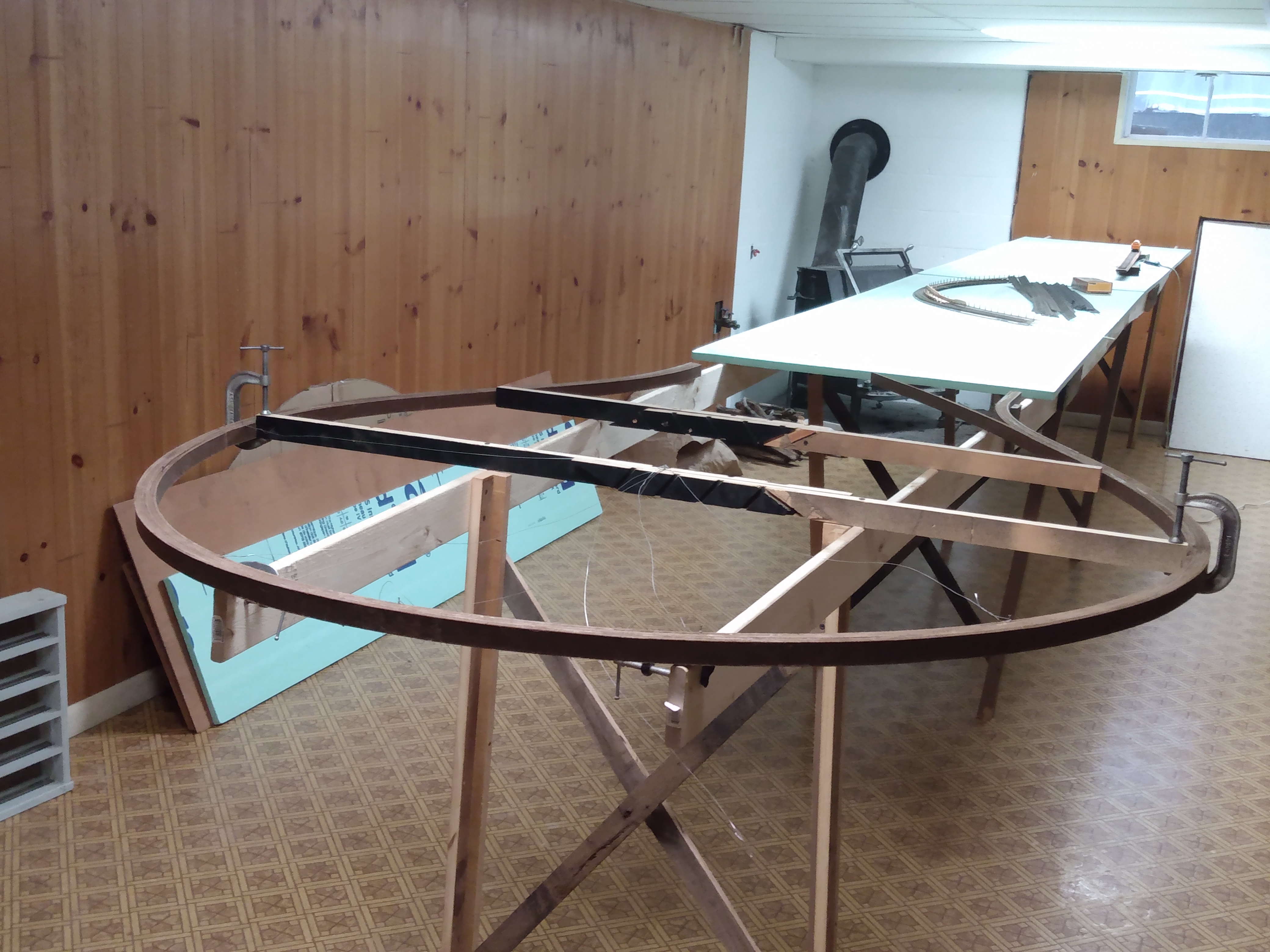

24/12/14

• added plates under spline ends and plywood
• tried sanding spline

24/12/8

• moved cd player into train room
• discovered foam panels different thickness
• cut 1" panel from garage, used waste to fill in to wall

24/12/9

• trimmed foam edge leading to loop
• drew center-line
• started placing staging turnouts
  • cut webs on turnout, used 28" radial to curve
  • placed 3' sections along centerline
• foam seem higher than track, need to adjust
• tacked track to loop
• split cork and placed some along station track

Possibilities

• #13 East Bear Ridge Coal Co Colliery
• #14 Mahanoy Plane

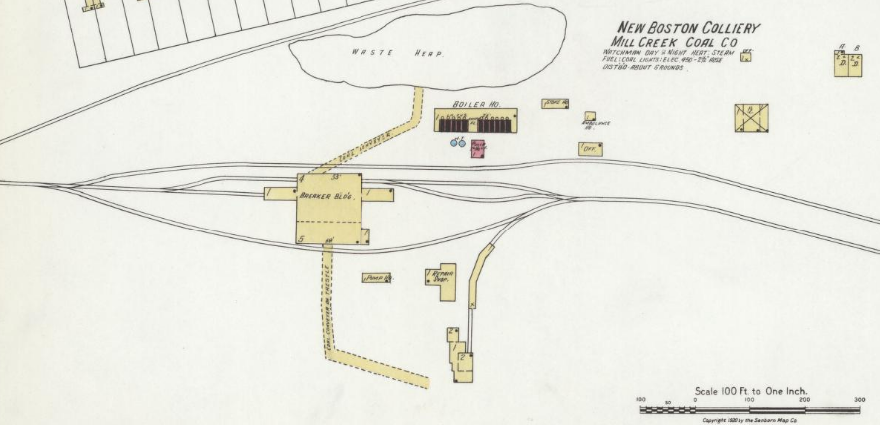

• #15 New Boston Colliery

ironWorks	langhorne	mahanoyCity
mahanoyCreek	mahanoyPlane	mahanoyPlane
millstone	newBostonColliery	newHope
phillyWharf	phillyWharf2
